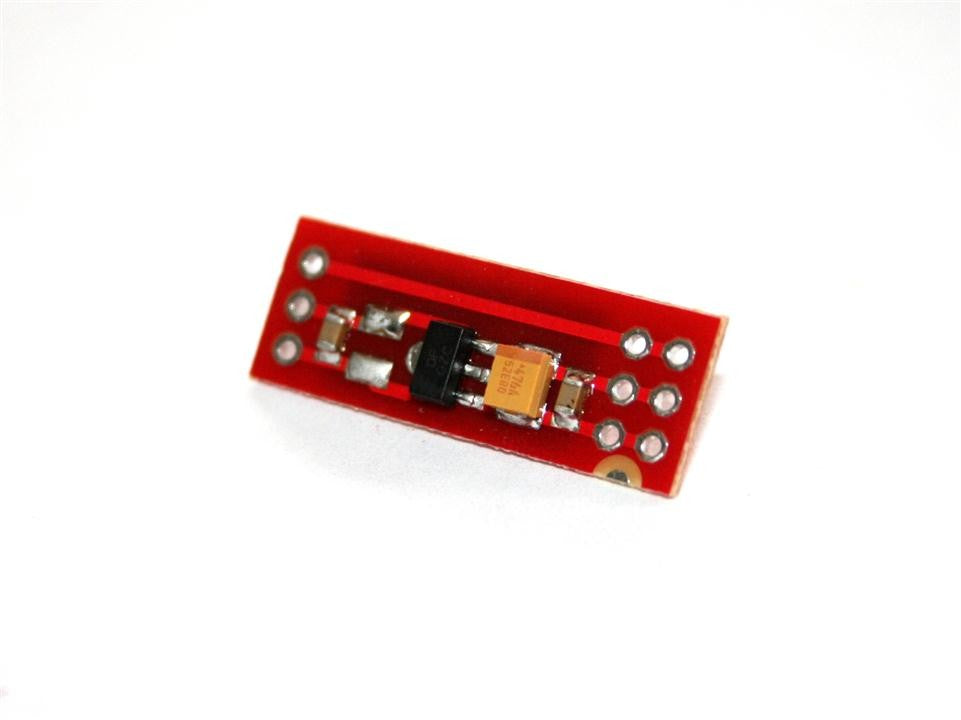

Tiny 5volt Regulator
A tiny 5volt regulator with maximum 1A current consumptions.
Great for 5volt FPV equipment
Weight is only 0.65gr
This tiny 5volt regulator perfect for your 5volt FPV cameras or similar equipment.
It's including hi-tech LDO regulator and this LDO accepting 7-18V input voltage.
We designed the PCB with 1 input and 2 output(for a second usage) and an extra signal pins. You can use standard a servo wire for connecting your 5V camera to 12V OSD systems.
IMPORTANT: This tiny regulator using an LDO chip and converts the voltage difference to "heat". Regulator chip including a thermal shutdown on 125-degree Celcius and it can handle continuous 800mA current easily if you can cool it. We are suggesting to maximum 200mA for non-cooled applications. Check the temperature of it before your first application to understanding the cooling requirements.
|Input Voltage||: 7-18V (2-4S LiPO)|
|Output Voltage||: 5 volt|
|Current(continuous)||: 500mA nominal 1A max|
