Absolute Maximum Ratings

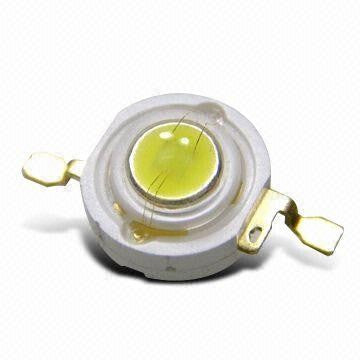

3W Power LEDs
£1.49
Price includes VAT where applicable.
Worldwide shippingTracked, from the UK
1 year warrantyOn all electronics
Engineer supportWe designed these boards
Description
Quality 3W Power LED for plane strobes or car front lights.
- Luminous Flux:200-220 lumen
- Forward Voltage: 3.2-3.6v (1.4v for IR versions)
- Drive current: 700mA max.
- Shapes: Round
- Lens colours: Water clear
- Life Span: 100,000 Hours
- With RoHS & CE Approved
- Beam angle: 120 degrees
Warning: Every LED light source requires a driver. If you connect them to the power supply directly, they will burn immediately because of the high current.
If you want to drive these LEDs continuously by your battery, a simple calculated serial resistor will work.
Please visit the link below to calculate the right resistor value.
https://www.digikey.co.uk/en/resources/conversion-calculators/conversion-calculator-led-series-resistor
Absolute Maximum Ratings
| Parameter | Symbol | Value | Unit |
| Forward Current | If | 750 | mA |
| Junction Temperature | Tj | 115 | °C |
| Operating Temperature | Topr | -40~+60 | °C |
| Storage Temperature | Tstg | 0~+60 | °C |
| ESD Sensitivity | ~ | +/- 2,000 V HBM | ~ |
| Temperature Coefficient of voltage | ~ | -5 | mV/ °C |
| DC Pulse Current(@ 1 KHz,10% duty cycle) | IFP | 1000 | mA |
| Reverse Voltage | VR | No reverse operation |
