FlytronIn stock

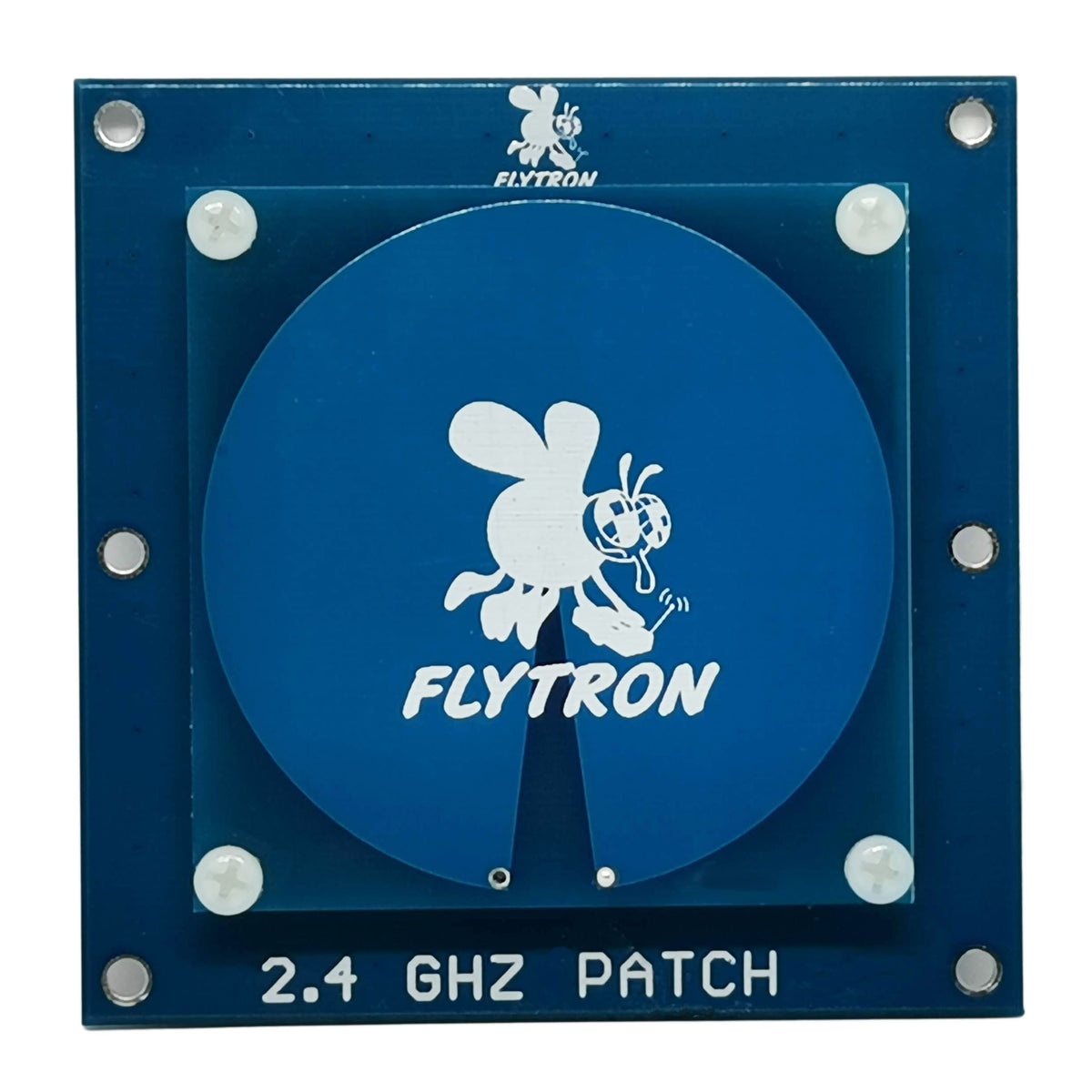

2.4ghz 11dB RHCP Patch Antenna
£11.90
Price includes VAT where applicable.
Worldwide shippingTracked, from the UK
1 year warrantyOn all electronics
Engineer supportWe designed these boards
Description
11dBi Right Hand Circular Polarization (RHCP) Patch Antenna
--
Right Hand Circular Pattern(RHCP) Patch antenna for 2.4ghz FPV applications.
This antenna has an extremely wide band that covers all 2.4ghz band channels with great SWR levels.
The 11dbi 70 degrees beam provides comfortably mount with this patch antenna directly to your FATSHARK / FPV goggles / Receivers / Transmitters.
The directional beam pattern provides a longer range than any other antenna designs and also lightweight and robust.
Ideal antenna for daily FPV flights. Also, you can use them as a pair for long-range video transmission.
SPECIFICATIONS:
- 11dBi Gain
- 1.05 SWR at 2.450 Mhz (Less than 2 in the whole band)
- Right Hand Circular Polarization
- 2.400 - 2.500 MHz tuned frequency
- 70° beam width
- 80 x 80mm
- SMA Male connector (selectable)
