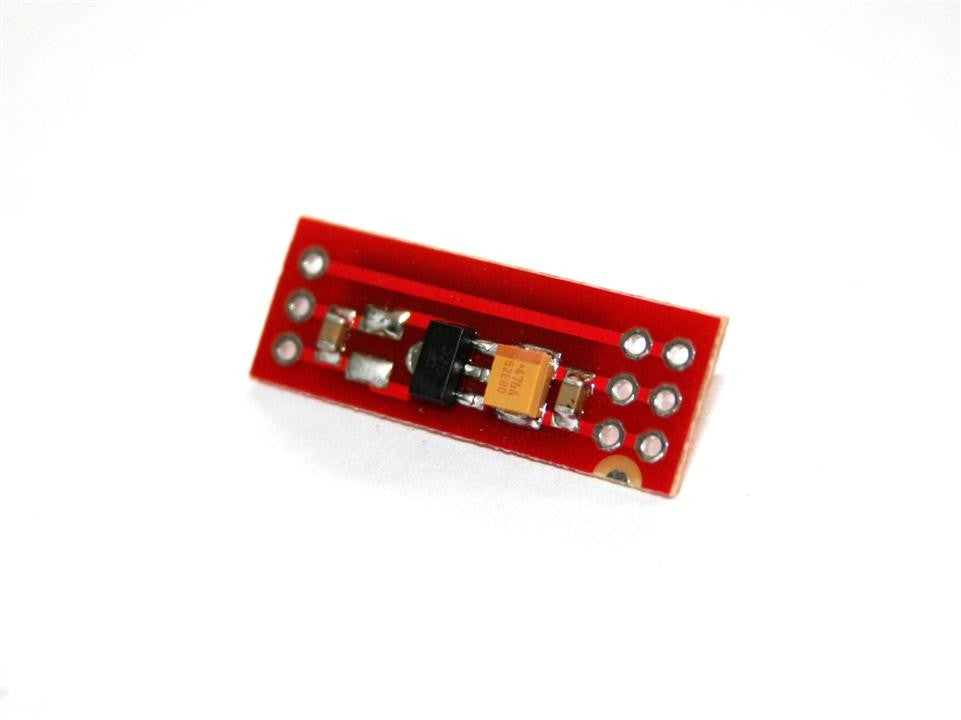

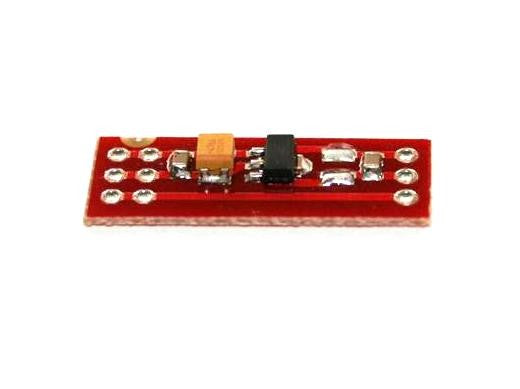

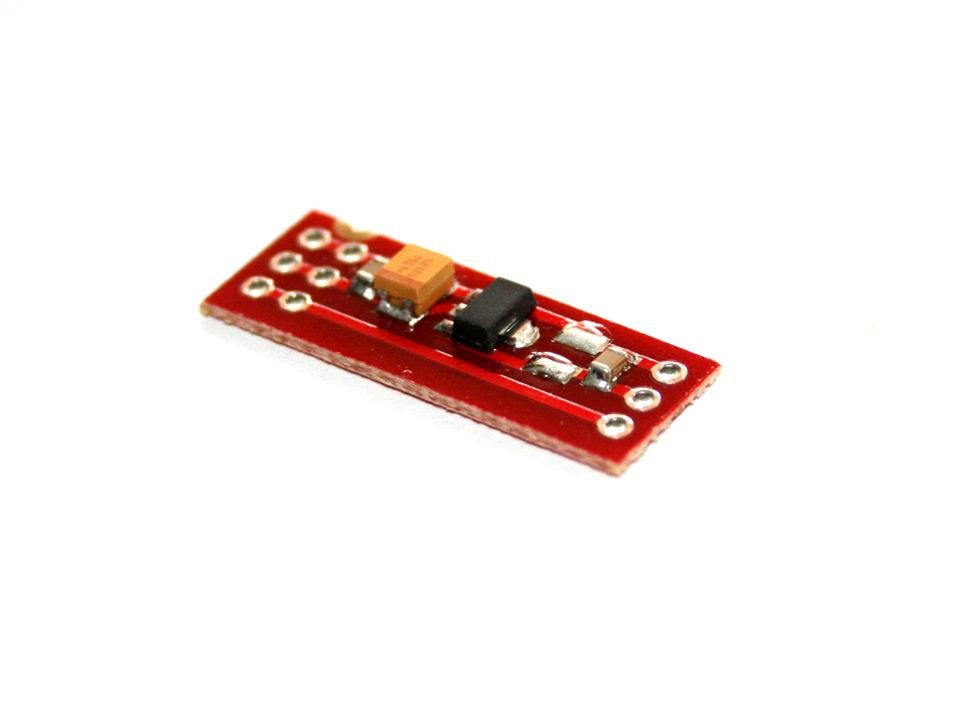

Tiny 5volt Regulator

This tiny 5volt regulator perfect for your 5volt FPV cameras or similar equipment.

It's including hi-tech LDO regulator and this LDO accepting 7-18V input voltage.

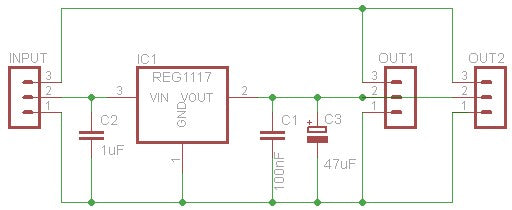

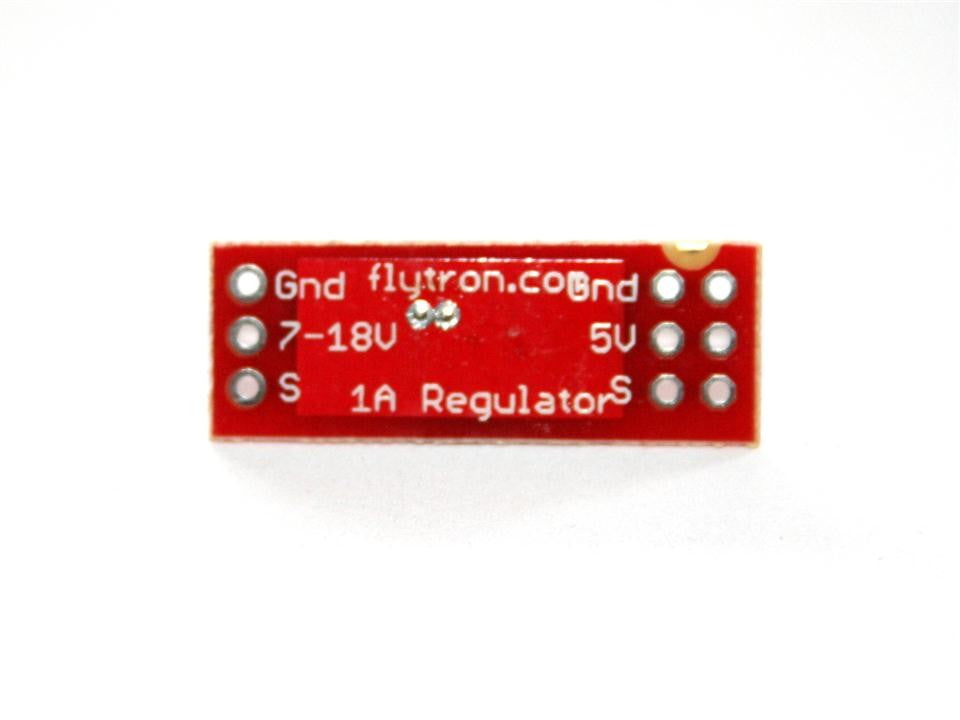

We designed the PCB with 1 input and 2 output(for a second usage) and an extra signal pins. You can use standard a servo wire for connecting your 5V camera to 12V OSD systems.

IMPORTANT: This tiny regulator using an LDO chip and converts the voltage difference to "heat". Regulator chip including a thermal shutdown on 125-degree Celcius and it can handle continuous 800mA current easily if you can cool it. We are suggesting to maximum 200mA for non-cooled applications. Check the temperature of it before your first application to understanding the cooling requirements.
